语义尺度影响的相离区域合并与拓扑关系计算

王占刚, 吴自兴, 王想红

王占刚, 吴自兴, 王想红. 语义尺度影响的相离区域合并与拓扑关系计算[J]. 武汉大学学报 ( 信息科学版), 2018, 43(11): 1712-1718. DOI: 10.13203/j.whugis20170009
引用本文: 王占刚, 吴自兴, 王想红. 语义尺度影响的相离区域合并与拓扑关系计算[J]. 武汉大学学报 ( 信息科学版), 2018, 43(11): 1712-1718. DOI: 10.13203/j.whugis20170009
WANG Zhangang, WU Zixing, WANG Xianghong. Disjoint Region Merging and Topological Relation Computing Induced by Semantic Scale[J]. Geomatics and Information Science of Wuhan University, 2018, 43(11): 1712-1718. DOI: 10.13203/j.whugis20170009
Citation: WANG Zhangang, WU Zixing, WANG Xianghong. Disjoint Region Merging and Topological Relation Computing Induced by Semantic Scale[J]. Geomatics and Information Science of Wuhan University, 2018, 43(11): 1712-1718. DOI: 10.13203/j.whugis20170009

语义尺度影响的相离区域合并与拓扑关系计算

基金项目:

国家自然科学基金 41672326

国家自然科学基金 41202238

中央高校基本科研业务费专项资金

详细信息
    作者简介:

    王占刚, 博士, 副教授, 主要从事数学地质、三维地质建模和地质信息系统等研究。millwzg@163.com

  • 中图分类号: P208

Disjoint Region Merging and Topological Relation Computing Induced by Semantic Scale

Funds:

The National Natural Science Foundation of China 41672326

The National Natural Science Foundation of China 41202238

the Fundamental Research Funds for the Central Universities

More Information
    Author Bio:

    WANG Zhangang, PhD, associate professor, specializes in the mathematical geology, 3D geological modeling and geological information system.E-mail:millwzg@163.com

  • 摘要: 拓扑关系随着语义尺度的变化需要重新推理或者计算。当粗略语义尺度下的区域对象由详细尺度下的有限个区域合并而成时, 区域对象间的拓扑关系可采用已有的组合推理方法得到, 然而这些方法只适用于简单对象并存在多解性。针对此问题, 提出了基于9交模型的拓扑关系多尺度计算方法, 分别针对相离区域合并和相邻区域合并定义了9交矩阵操作算子, 可利用详细语义尺度的拓扑关系直接计算出合并区域间的9交矩阵。利用9交矩阵操作算子得到的计算结果值域为复杂区域对象间所有可能的拓扑关系, 且不存在多解性, 通过消除歧义性还可扩展9交矩阵操作算子, 适用于多个相离简单区域组合的复杂区域。
    Abstract: Topological relations vary with the changes of semantic scales.Complex regions with diffe-rent semantic scales are merged by a finite number of simple regions and their topological relations have to be updated.The current methods make use of inferred combinatorial tables based on basic topological relations between simple regions.However, these methods are generally only applicable to simple objects and have multiple solutions.This paper presents a computation approach of modeling scale dependences of topological relations based on the 9-intersection (9I) model.In terms of the disconnected region merging and adjacent region merging, 9I-based matrix operators are defined for computing directly topological relations of the coarse semantic scale from the relations of the detailed scale.The computation results of the 9I-based matrix operators have no multiple solutions, and the computation domain can cover for all possible topological relations between complex regions.The 9I-based matrix operators can be extended to process composite regions composed of disconnected simple regions by eliminating ambiguities.
  • 图  1   区域对象定义

    Figure  1.   Definition of Region Objects

    图  2   具有公共边界的区域合并与拓扑关系计算

    Figure  2.   Regions Merging with Common Boundaries and Topological Relations Computing

    图  3   添加辅助区域消除计算错误(当B1B2为边相接关系)

    Figure  3.   Extra Regions Added to Solve Ambiguities When B1 Meets B2 with Common Boundaries

    图  4   添加带洞辅助区域处理具有公共边界的B1B2区域合并

    Figure  4.   Adding Extra Regions with Holes to Merge B1 and B2 with Common Boundaries

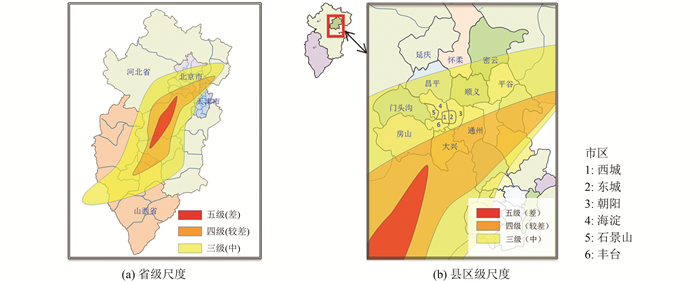

    图  5   华北4省气象信息系统空气污染条件(2016年10月5日6时)

    Figure  5.   Meteorological Conditions of Air Pollution in Four Provinces of North China (At 6:00 on October 5, 2016)

    图  6   河北省区域构成与附加区域

    Figure  6.   Administrative Regions of Hebei Province and the Added Extra Regions
